Ranch Utility Gates

Ranch Utility Gate Package-

Price- $4,200.00 installed, with American Armor solar gate operator.

Price- $4,500.00 installed, with Patriot solar gate operator.

Optional artwork, silhouette, ranch brand, etc.- $150.00.

Gate Specs:

Available in 10', 12', 14', 16'.

4' frame height.

Galvanized finish.
Adustable J bolt hinges.
Includes 4" steel square tube gate posts.
Includes postholes, concrete, onsite welding.
Optional- ranch brand, logo, address, etc. included at no additional charge.

Gate operator specs:

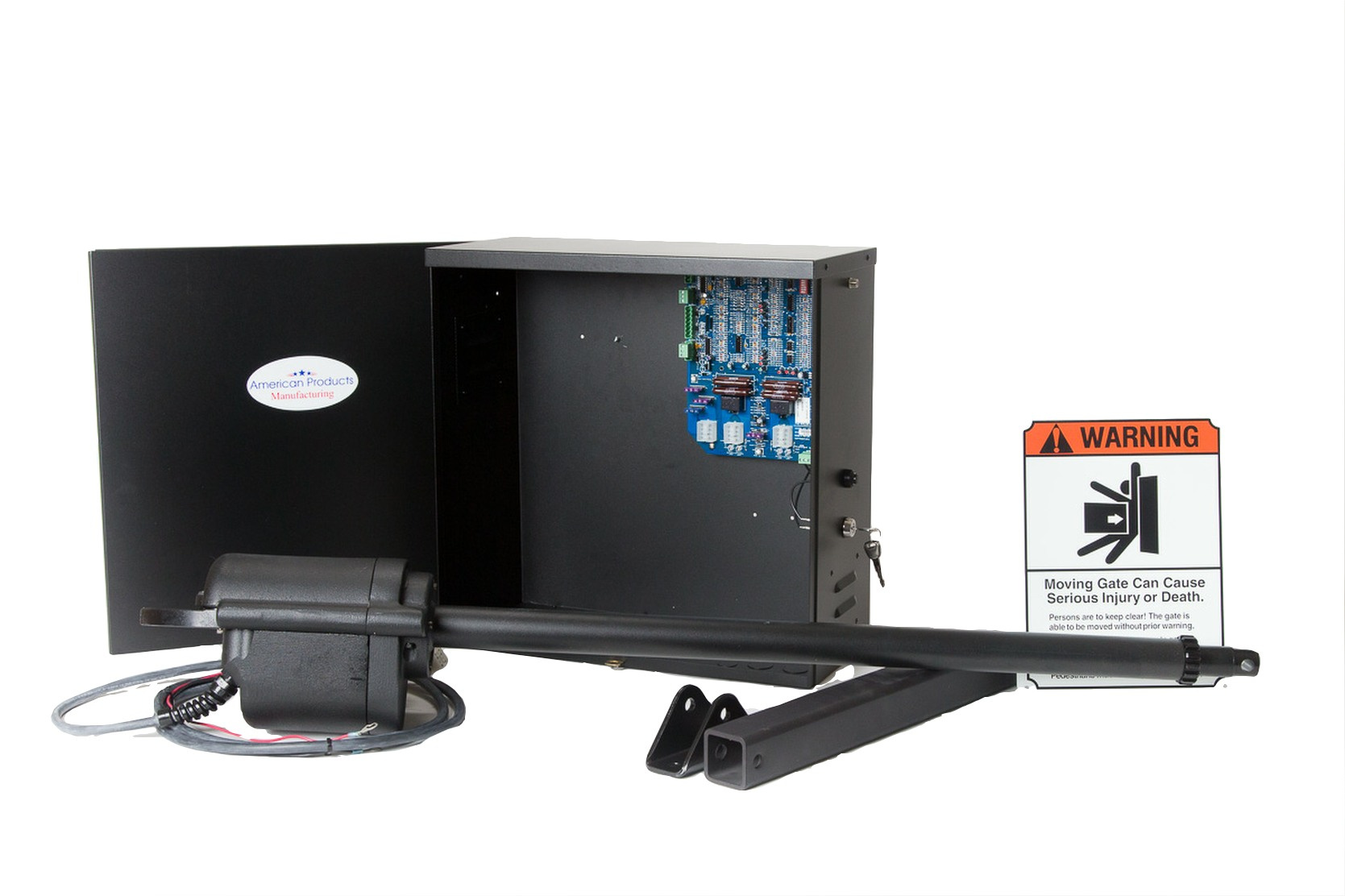

American Armor gate operator

Made in the U.S.A.
3 year warranty.
Solar or A/C compatible.
Auto close timer.
Rated for gates up to 16' in length and 500 lbs.
Our American Armor gate operator installations include a 12 Volt, 55 amp hr., sealed maintenance free AGM battery, 10 Watt solar panel (for solar option), battery charger (for A/C option), Multicode radio receiver, and two Multicode push button remote transmitters.

Patriot gate operator

Made in the U.S.A.
5 year control board warranty. 3 year warranty on all other parts.
Solar or A/C compatible.
Soft Stop/Start.
Auto close timer.
Hold open feature for parties, deliveries, projects, etc.
Rated for gates up to 16' in length and 650 lbs.
Our Patriot operator installations include a 12 Volt, 55 amp hr., sealed maintenance free AGM battery, 10 Watt solar panel (for solar option), battery charger (for A/C option), LCR radio receiver, and two LCR push button remote transmitters.

Accessories

Remote transmitter for Patriot- $35.00.

Remote Transmitter for American Armor- $25.00.

Push button for entry/exit- $275.00.

U.S. Automatic code keypad for entry/exit- $375.00.

Keypad pedestal for access from a vehicle- $150.00.

Automatic exit wand- $975.00.
Includes standard trenching. Rocky areas requiring a rock saw will be an additional charge.

Solar panel and battery up sizing available for higher traffic useage.
